N42 vs N52 Magnets Strength Temperature and Uses

Understanding Neodymium Magnet Grades

Neodymium magnets, often called rare earth magnets, are among the strongest permanent magnets available today. Their “grade” is a measure of magnetic strength, expressed with an N rating such as N35, N42, or N52. This N number stands for the magnet’s maximum energy product, measured in Mega-Gauss Oersteds (MGOe). In simple terms, the higher the number, the stronger the magnetic field a magnet can produce for its size.

All neodymium magnets are made from an alloy of neodymium (Nd), iron (Fe), and boron (B) — abbreviated as NdFeB. The manufacturing process involves melting and casting the alloy, cooling it into blocks, grinding it into precise shapes, and finally magnetizing it. Small differences in material composition, crystal structure, and refining methods determine the final magnetic strength and temperature capability, which is why grades like N42 and N52 exist in the first place.

In short, the grade rating tells you how powerful the magnet is, helping you choose the right balance between strength, size, and cost for your application.

Detailed Specification Comparison Between N42 and N52

When comparing N42 vs N52 magnets, the key differences come down to strength, temperature limits, and cost. Both are neodymium rare earth magnets, but their grade defines how powerful they are and how they perform in different environments.

Here’s a quick side‑by‑side look:

Key takeaways:

• Strength: N52 offers higher pull force in the same size magnet.
• Temperature: N42 can handle slightly higher temps before losing strength. For higher-heat environments, special grades are needed (see high‑temperature magnet guide).
• Durability: Both grades chip easily and need a protective coating.
• Price: N52 costs more, often not worth it if you don’t need the extra force.

Performance Differences What Does N52 Offer Over N42

N52 magnets are simply the strongest standard grade of neodymium magnets you can buy. Compared to N42, they have a higher maximum energy product, which means they can produce more magnetic strength from the same size.

What this means in real use

• More pull force: An N52 magnet can lift or hold more weight than an N42 of the same dimensions.
• Smaller size for same strength: If you need a specific holding force, you can use a smaller N52 instead of a larger N42, saving space and material.
• Higher efficiency: In applications like motors or sensors, stronger magnets can improve performance or reduce energy loss.

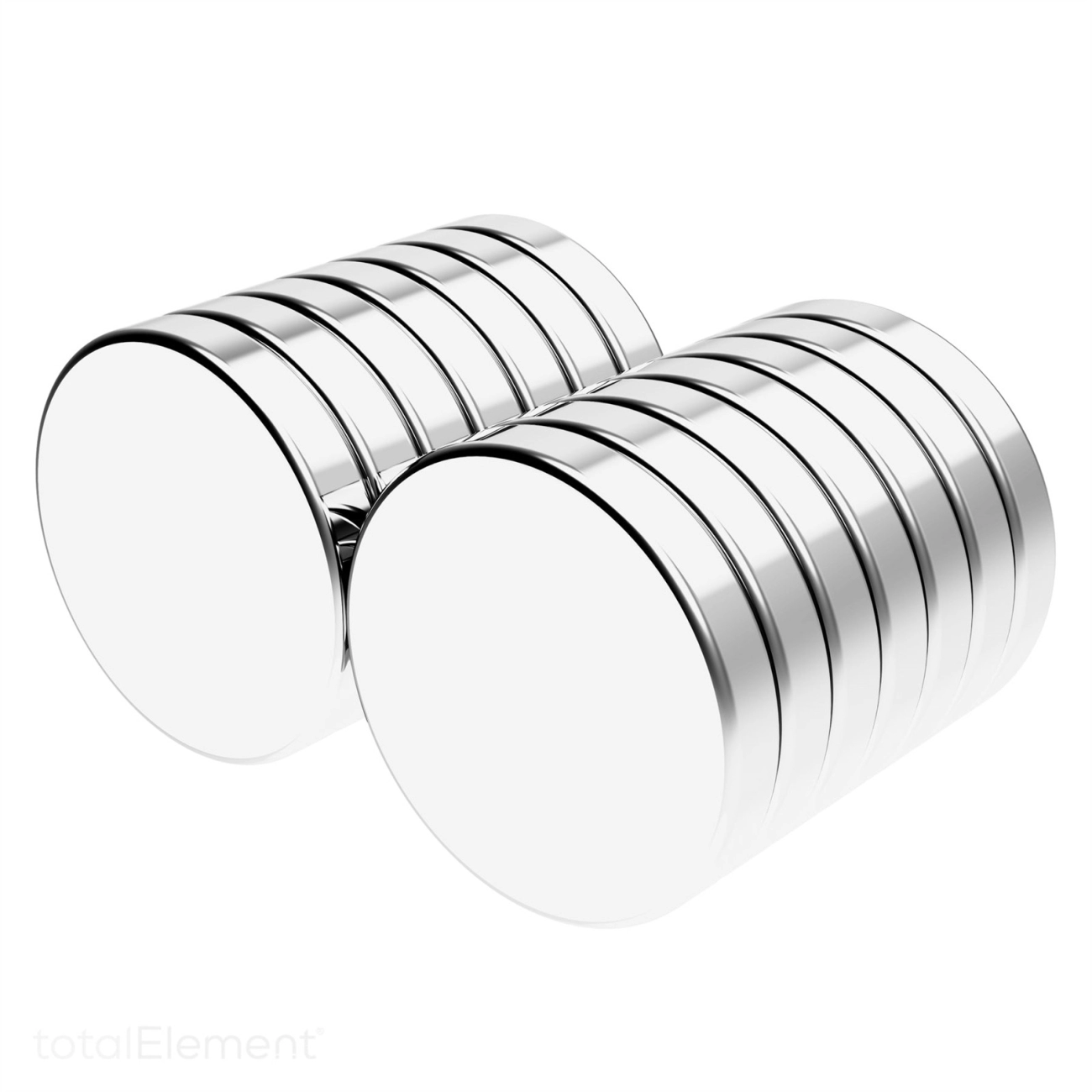

Example Pull Force Comparison (1″ x 1/4″ Disc)

Where this makes a difference

• Precision devices: Smaller form factor without losing holding power.
• Limited space designs: Robotics, medical tools, and compact motors.
• High-performance setups: Magnetic separators, heavy-duty holding systems.

Limitations of N52

• Temperature sensitivity: Loses strength faster than N42 when exposed to high heat (above ~140°F).
• Brittleness: Slightly more prone to chipping or cracking under impact.
• Cost: Higher price point due to higher grade material.

Choosing between N42 and N52 really comes down to space, strength needs, and operating environment. If heat or cost is a factor, N42 often works better. If peak power in small size is your goal, N52 wins.

Application Suitability When to Choose N42 vs N52

Choosing between N42 and N52 neodymium magnets really comes down to balancing strength, size, cost, and the environment where they’ll be used. Each grade has its sweet spots.

Typical Uses for N42 Magnets

N42 is a solid “all-around” grade. It offers strong magnetic pull, but it’s more affordable and handles slightly higher temperatures better than N52 in some applications. It’s a popular pick for:

• Electric motors and generators
• Magnetic separators for recycling or food processing
• Speakers and audio equipment
• Educational demos and science projects
• General holding and mounting applications where extreme pull isn’t needed

Typical Uses for N52 Magnets

N52 is the strongest commercially available grade, so it’s chosen when maximum pull in the smallest size is the priority. You’ll see it used in:

• Compact motors and robotics where space is tight
• High-strength holding and clamping
• Magnetic sensors and precision devices
• Specialty hobby projects like RC models or custom mechanical builds
• Applications where every ounce of pull force counts

Choosing Based on Needs

• Size constraints – Go for N52 if you need maximum strength in minimal space.
• Holding requirements – Use N52 for critical pulls; N42 is fine if you have more surface area or don’t need max pull.
• Cost-effectiveness – N42 is cheaper and often “good enough” for industrial uses.
• Operating environment – If you’re working in higher heat (above ~80°C), check temperature ratings. N42 can sometimes handle heat a bit better depending on the coating and design. See more on which magnets can withstand high temperatures.

In short, U.S. buyers looking for cost-effective industrial magnets often stick with N42, while those building compact, high-performance devices lean toward N52.

Factors Beyond Grade That Affect Magnet Performance

When comparing N42 and N52 magnets, the grade isn’t the only thing that determines how well they’ll work in your application. A few other factors can have just as much impact on performance and lifespan.

1. Coating and Corrosion Protection

Neodymium magnets are prone to rust if left unprotected. Coatings like Ni-Cu-Ni (nickel-copper-nickel), epoxy, and zinc are common.

• Ni-Cu-Ni – Standard option, durable, smooth finish, good for most indoor uses.
• Epoxy – Extra corrosion resistance, better for humid or outdoor settings.
• Zinc – Budget-friendly, but not as durable as nickel-based coatings.

2. Shape and Size

The magnet’s geometry affects field strength and pull force.

• Thin discs or small blocks may lose strength faster in high-temperature or high-vibration environments.
• Larger surface area gives better holding power even if the grade is lower.

3. Assembly and Installation

How and where the magnet is mounted can change its performance.

• Use proper backing plates for better magnetic circuit efficiency.
• Avoid mechanical stress—neodymium is brittle and can chip if hit.
• Keep magnets from direct impact during assembly.

4. Supplier Quality and Consistency

Two magnets with the same grade can perform very differently if manufacturing quality isn’t consistent.

• NBAEM ensures strict quality control, following international standards.
• Consistent magnetization, precise tolerances, and reliable coating adhesion are part of NBAEM’s production checks.

By looking beyond the grade and paying attention to coatings, design, mounting, and supplier standards, you can make sure the magnet—whether N42 or N52—delivers maximum performance for your needs.

Buying Tips How to Choose the Right Magnet Grade

Choosing between N42 and N52 magnets comes down to matching the right grade to your exact needs. Here’s how I’d break it down.

1. Know Your Application

• Holding force needed – Heavier loads or stronger grip? N52 might be worth it.
• Space limits – If you need high strength in a small size, N52 is better. If there’s room for a larger magnet, N42 can do the job.
• Operating temperature – N42 typically handles heat a bit better than N52.

2. Balance Performance vs. Cost

N52 is stronger but also more expensive. If you don’t need that extra pull, N42 gives better value.

3. Think Long-Term Use

• Ensure the coating matches the environment (Ni-Cu-Ni for general use, epoxy for outdoor/humid conditions).
• Higher grades can chip more easily—handle carefully.

4. Source from a Reliable Supplier

When ordering from China, like NBAEM, check for:

• Consistent grade tolerance (true N42 or N52, not downgraded stock)
• Quality certifications
• Custom sizing and coating options
• Clear technical support

If you give NBAEM the details—pull force needed, space available, and working environment—they can recommend the most cost-effective and durable choice.

NBAEM Offering and Expertise in N42 and N52 Magnets

NBAEM supplies a full range of N42 and N52 neodymium magnets in various shapes, sizes, and coatings to fit different performance needs. Whether you need small precision magnets for sensors or high-strength pieces for motors, we can customize dimensions, grades, and surface treatments to match your application.

We follow strict quality control standards with ISO-certified processes to ensure every magnet meets consistent strength, tolerance, and durability requirements. All batches are tested for magnetic performance, coating integrity, and temperature resistance before shipping.

Our team works directly with U.S. customers to help choose the right grade—whether you need the cost-effectiveness of N42 or the extreme pull force of N52. We also offer guidance on design integration, operating environment considerations, and long-term reliability.

If you’re looking for a dependable supplier for high-quality neodymium magnets from China, contact NBAEM today. We’ll provide expert recommendations, competitive pricing, and fast delivery to keep your project on schedule.
